Our FRP Concentric Reducers, Double Flange FRP Reducer, GRP desalination pipe are diverse in styles, and we can meet your needs. The company takes science and technology as the driving force, quality as the life of the company, quality is the benefit of the company, and quality is the driving force for the development of the company, and strive for survival by quality. We focus on the strategic layout of the global industry, steadily implement industrial extension and capital expansion, and accelerate our progress towards an international integrated enterprise.
The FRP Membrane housing series products developed and produced by Zhongfu Lianzhong company are suitable for the special customization of international mainstream RO, NF, UF, MF and other international standard membrane components as well as non-standard size membrane housing products. Widely used in food industry, pharmaceutical and chemical industry, electronic power, metallurgy and petrochemical, reclaimed water reuse, seawater desalination and other water treatment projects.
Advanced molding technic, improving the smoothness of inner wall. E-Glass fiberglass is selected as reinforced material to improve the compression resistance, fatigue resistance and deformation resistance of the products. Adopt high grade automobile baking varnish craft to ensure the smoothness and brightness of the product surface. Adopt epoxy resin system, which has excellent corrosion resistance, anti-aging, high temperature resistance, and oxidation resistance of the products.
Specifications:
Specification | 4 inch- - the number of membrane elements shall be chosen from 1/2/3/4 element(s). 8 inch. 16 inch- -the number of membrane elements shall be chosen from 1/2/3/4/5/6/7/8 element(s). |
Pressure | Customers can choose the pressure of membrane housing of4 inches .8 inches and 16 inches according to their requirements. 150PSI ( 1.05MPa) .300PSI ( 2.1MPa).450PSI ( 3.1MPa),600PSI( 4.1MPa),800PSI ( 5.5MPa),1000PSI( 6.9MPa),1200PSI( 8.3MPa ) |
Temperature | Allowable Working Temperature: -10*C~ + 65C/88*C |
Reference Standards | ASME BPVC.X Fiber-Reinforced Plastic Pressure Vessels ; GB/T 30300( Membrane Housing ) |

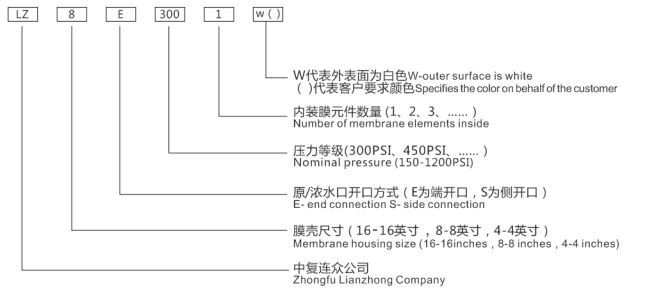

Model instruction:
Membrane housing specification selection table:
Wooden frame packed with plastic film, protecting membrane housing from crashing or shaking.
Professional installation instructions and after-sales services on site.
Fiberglass membrane housings are specially designed for seawater reverse osmosis membranes used in marine applications, seawater desalination in shipboard applications, watermakers and sea-based desalinations.
FAQ:
Q: Do you provide sample ? Is it free?
If the sample is low value, we will provide the sample for free with the freight in your charge. But for some high value samples, we need to collect the sample charge.
Q: How can we get a quote?
Fill in the Membrane Housing Specification Selection Table and send to us, recommending by e-mail . Then quotation will be provide within 1-2 day(s). to the real production process.
Parent Company : China National Building Material Group Co.，Ltd. ( CNBM,Fortune Global 500 )
Employees : 3,000
Factory Size : 2,668,000m²
Production Capabilities : 200,000 tons per year
Today, under the guidance of the new strategy, our company is committed to building an influential provider of the FRP Membrane Pressure Vessel Housing in China and becoming a leader in the industry. The company resolutely regards meeting customer needs as its primary goal, and strives to provide customers with professional services and qualified products. Our products are sold all over the country and exported to many countries and regions abroad. We actively cooperate with other outstanding enterprises, hoping to create value together and build a dynamic and sustainable industry chain.
